S handong kaiyou portans co.,ltd
depictio producti
Angularis contactus pilae gestus maxime ferunt magna onera axialis unidirectionalia, et quo maior angulus contactus, eo maior capacitas oneris. Cavea materia est ferrum, aes vel plasticum machinarium, et figurae modus est figurandi vel conversionis, quae secundum formam vel usum condiciones seligitur. Alii globum contactum angularis coniunctum includunt, globum globum gestus contactus duplices angularis et quattuor puncta contactus pilae gestus.
7303C series
7303 7304 7305 7306 7307 7308 7309 7310 7311 7312 7313 7314 7315 7316 7317 7318 7319 7320 7322 7324 7328 7330 7332 7336 7340
| Ferens | Dimensiones (mm) | Pondus (kg) | |||
| Nec. | d* | D | B | ||
| 7304C supportantes | 7304AC | 20 | 52 | 15 | 0.15 |
| 7305C supportantes | 7305AC | 25 | 62 | 17 | 0.23 |
| 7306C supportantes | 7306AC | 30 | 72 | 19 | 0.35 |
| 7307C supportantes | 7307AC | 35 | 80 | 21 | 0.47 |
| 7308C supportantes | 7308AC | 40 | 90 | 23 | 0.66 |
| 7309C supportantes | 7309AC | 45 | 100 | 25 | 0.86 |
| 7310C supportantes | 7310AC | 50 | 110 | 27 | 1.08 |
| 7311C supportantes | 7311AC | 55 | 120 | 29 | 1.42 |
| 7312C supportantes | 7312AC | 60 | 130 | 31 | 1.71 |
| 7313C supportantes | 7313AC | 65 | 140 | 33 | 2.23 |
| 7314C supportantes | 7314AC | 70 | 150 | 35 | 2.67 |
| 7315C supportantes | 7315AC | 75 | 160 | 37 | 3.1 |
| 7316C supportantes | 7316AC | 80 | 170 | 39 | 3.6 |
| 7317C supportantes | 7317AC | 85 | 180 | 41 | 4.38 |
| 7318C supportantes | 7318AC | 90 | 190 | 43 | 5.17 |
| 7319C supportantes | 7319 AC | 95 | 200 | 45 | 6.69 |
| 7320C supportantes | 7320AC | 100 | 215 | 47 | 7.6 |

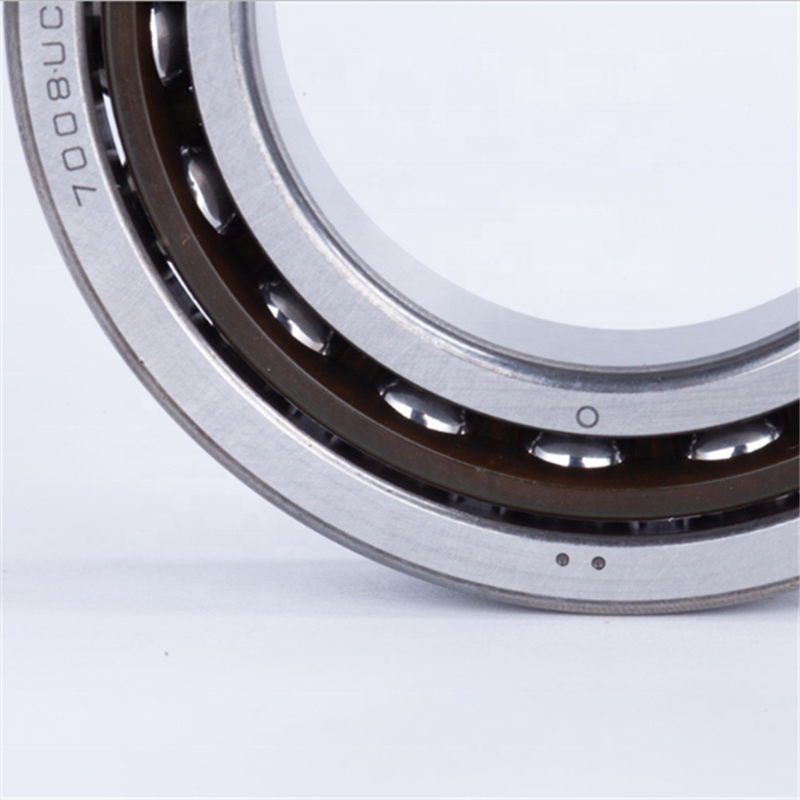

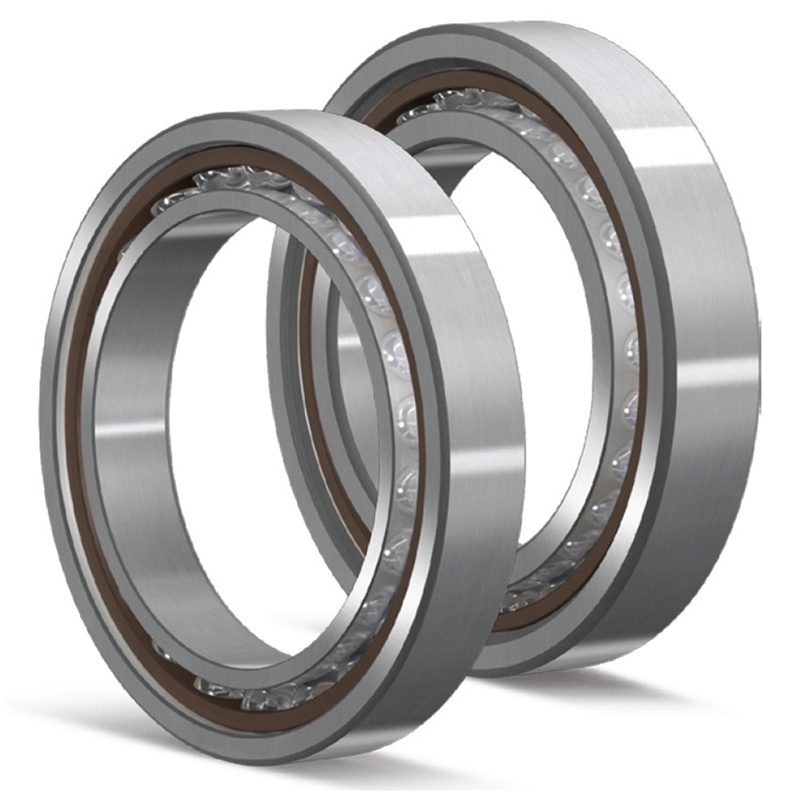

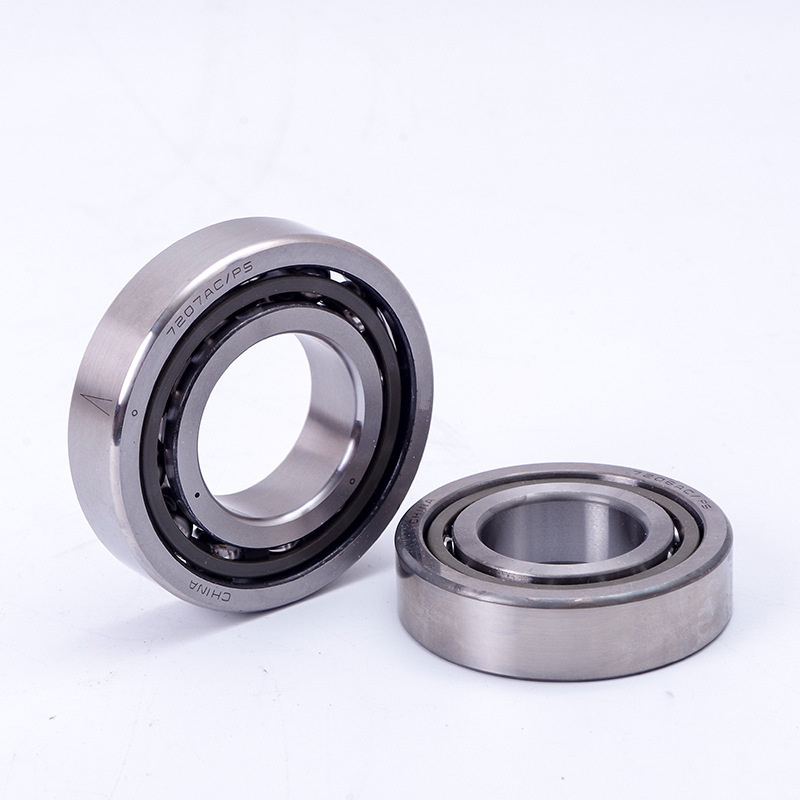

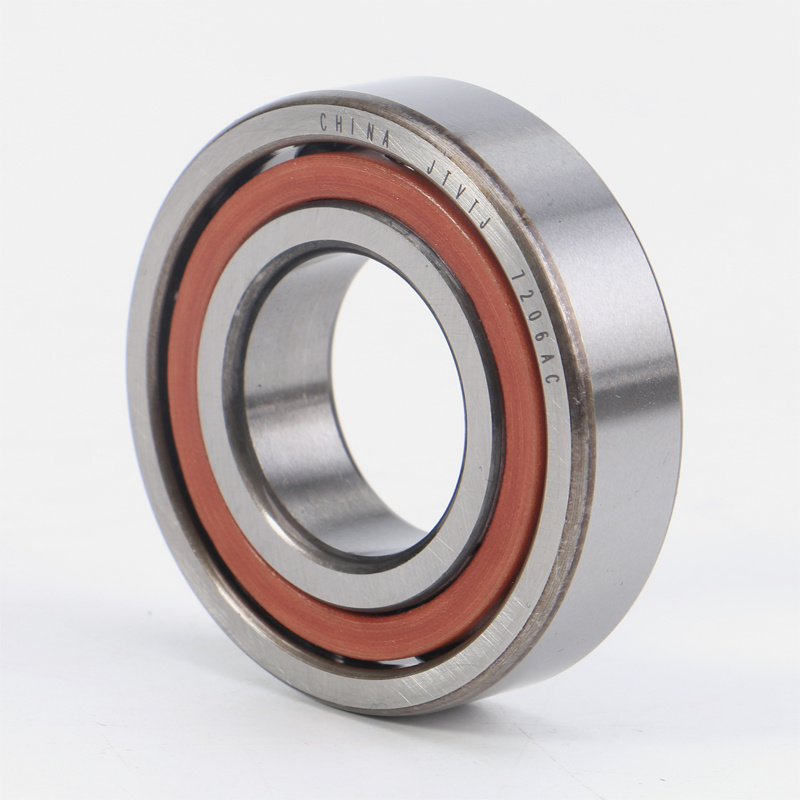

Product picture
Stipare & Delivery
Packaging Details
1. Commercial packaging: 1pc/plastic saccus + color archa + lobortis + grabatus;
2. packaging Industrial:
a). tubus plasticus + lobortis + grabatus;
b). plastic sacculo + kraft charta + lobortis + grabatus;
3. Secundum exigentiam elit.
